Name: L&amp;T Main Switch Disconnecter Fuse Unit TPN
SKU: 20942
Availability: InStock

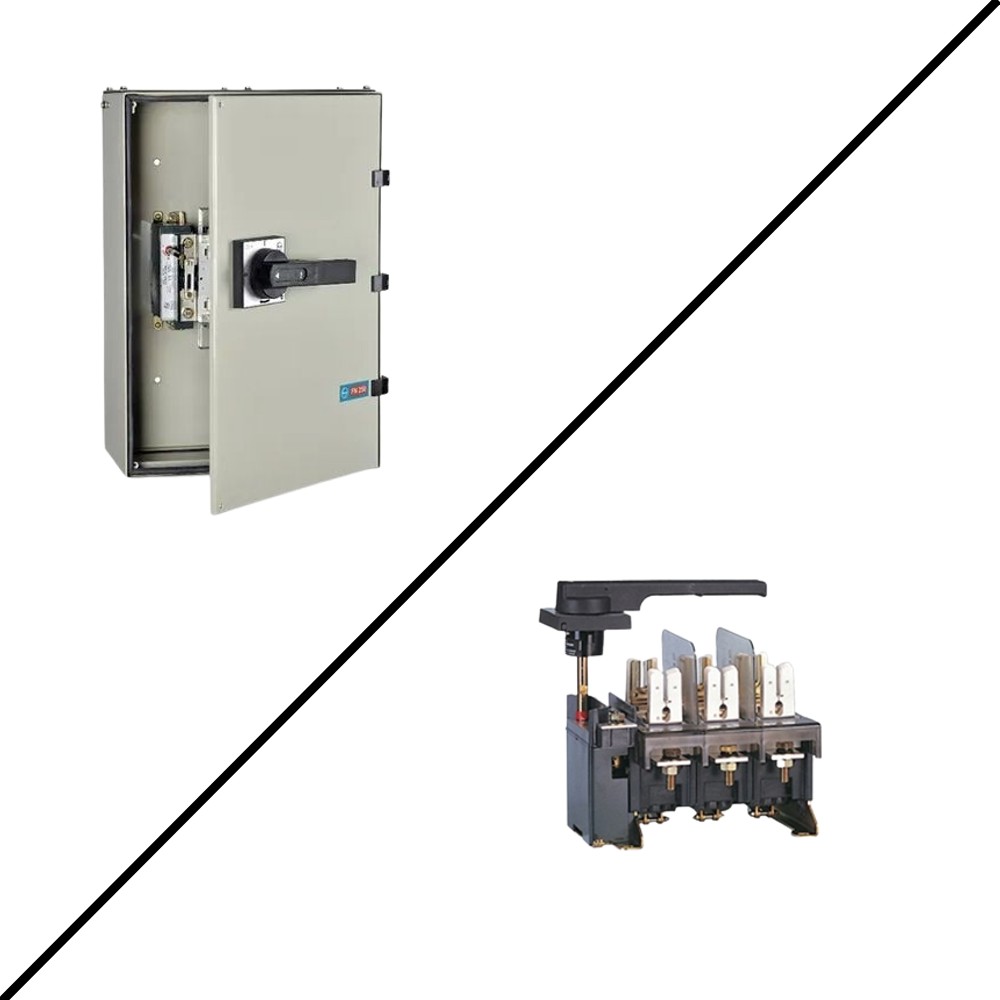

L&T Main Switch Disconnecter Fuse Unit TPN

₹2,363.00 - ₹43,758.00

Fits With - L&T Cyindrical/DIN HRC Fuse and other Standard Cyindrical/DIN HRC Fuse.

L&T 32-800A TPN Switch Disconnector Fuse Unit for DIN and Cylindrical HRC Fuses.
Range 32A to 800A, 415V, AC 23A
Commonly used as Main Switch for Domestic and Commercial Purposes.
Terminal Shrouds on both sides and Phase Barriers included
Door interlock & padlock facility
Conforms to IEC 60947-3, IS/IEC 60947-3
TPN SDF has isolable neutral
Suitable for Cylindrical/DIN fuse-link which can be purchased separately.

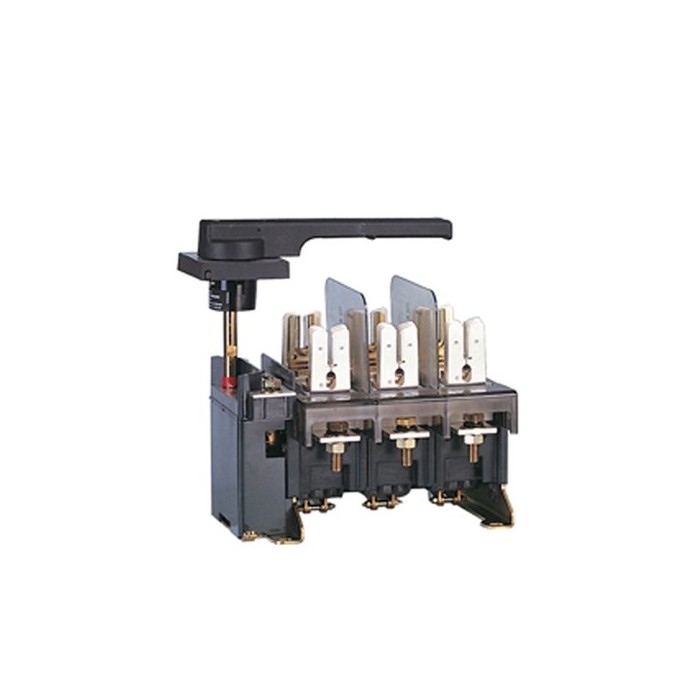

L&T TPN Main Switch Disconnector Fuse (SDF) without Enclosure or Open Execution:

- Range 32A to 800A, 415V, AC 23A

Conforms to IEC 60947-3, IS/IEC 60947-3
Terminal Shrouds on both sides and Phase Barriers included
Telescopic shaft for depth adjustment
TPN SDF has isolable neutral
4P SDF has Switched Neutral Pole and is 100% rated
Door interlock & padlock facility

		Suitable HRC fuse-link		Open Execution Type FN (TPN) S-D-F suitable for DIN fuse-link
Size	Rated Current (A)	Type	Range (A)	Type	Cat. No.
Fr 1	32	Cylindical HF Size 14×51	2 to 32	FN 32 TPN / FP	SK95518
Fr 1	32	Cylindical HF Size 14×51	2 to 32	FN 32 TPN / FP CE*	SK95703*
Fr 1	63	Cylindical HF Size 14×51	2 to 63	FN 63 TPN / FP	SK95421
Fr 1	63	Cylindical HF Size 14×51	2 to 63	FN 63 TPN / FP CE*	SK95704*
Fr 2	100	DIN HN Size 000/00	63 to 100	FN 100 TPN	SK95568
Fr 2	125	DIN HN Size 000/00	63 to 125	FN 125 TPN	SK95001
Fr 2	160	DIN HN Size 000/00	63 to 160	FN 160 TPN	SK95713
Fr 3	200	DIN HN Size 0	80 to 200	FN 200 TPN	SK95418
Fr 3	250	DIN HN Size 1	125 to 250	FN 250 TPN	SK95642
Fr 4	315	DIN HN Size 1	125 to 315	FN 315 TPN	SK95461
Fr 4	400	DIN HN Size 2	200 to 400	FN 400 TPN	SK95481
Fr 5	630	DIN HN Size 3	315 to 630	FN 630 TPN	SK95521
Fr 5	800	DIN HN Size 3	315 to 800	FN 800 TPN	SK95679

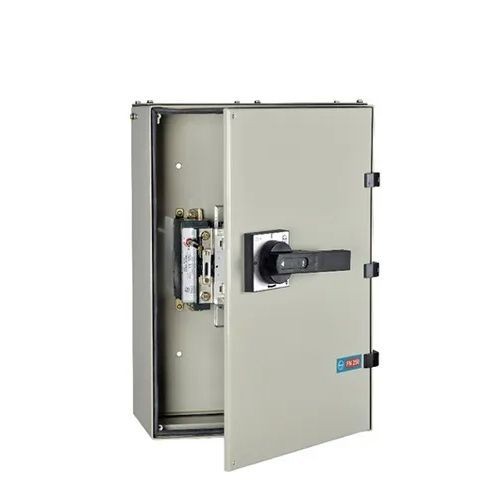

L&T TPN Main Switch Disconnector Fuse (SDF) with SS Enclosure:

Range 32A to 800A, 415V, AC 23A
Spacious Sheet Steel Enclosure
Separate cable gland box not required
Terminal Shrouds on both sides and Phase Barriers included

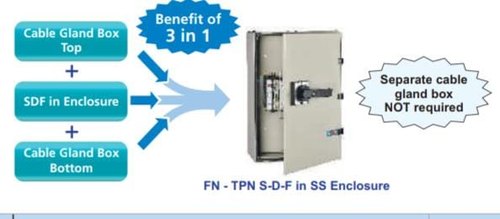

Benefits of 3 in 1:
- Cable Gland Box Top
- SDF in Enclosure
- Cable Gland Box Bottom
Conforms to IEC 60947-3, IS/IEC 60947-3
Suitable for Cylindrical/DIN fuse-link
Door interlock & padlock facility
The SDF units in SS enclosure version can be replaced with FN TPN SDF open execution units. Please refer below for replacement of 250A unit
For replacement of FN 250 SDF unit in sheet steel enclosure version (Cat. No. SK90489OOOO & SK95681OOOO), order Cat. No. ST97895OOOO

		Suitable HRC fuse-link		In Sheet Steel Enclosure Type FN (TPN) S-D-F suitable for DIN fuse-link
Size	Rated Current (A)	Type	Range (A)	Type	Cat. No.
Fr 1	32	Cylindical HF Size 14×51	2 to 32	FN 32 TPN / FP CE*	SK90483*
Fr 1	63	Cylindical HF Size 14×51	2 to 63	FN 63 TPN / FP CE*	SK90484*
Fr 2	100	DIN HN Size 000/00	63 to 100	FN 100 TPN	SK90485
Fr 2	125	DIN HN Size 000/00	63 to 125	FN 125 TPN	SK90486
Fr 2	160	DIN HN Size 000/00	63 to 160	FN 160 TPN	SK90487
Fr 3	200	DIN HN Size 0	80 to 200	FN 200 TPN	SK90488
Fr 3	250	DIN HN Size 1	125 to 250	FN 250 TPN	SK90489
Fr 4	315	DIN HN Size 1	125 to 315	FN 315 TPN	SK90490
Fr 4	400	DIN HN Size 2	200 to 400	FN 400 TPN	SK90491
Fr 5	630	DIN HN Size 3	315 to 630	FN 630 TPN	SK90492
Fr 5	800	DIN HN Size 3	315 to 800	FN 800 TPN	SK90493

Rated Current (A)

32A, 63A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 630A, 800A

Types

SS Enclosure, Without Enclosure

Country of Origin

India

Brand

L&T Switchgear

Manufacturer's Assurance

1 Year Warranty

No. of Poles

TPN

Voltage

415V

Click to enlarge

*Product images are for illustrative purposes only. Actual product may vary.

Previous product

Legrand Myrius 1.5A Modular USB Socket 1M White ₹1,071.00 ~~₹1,756.00~~ 39% off
(₹1,263.78 incl. GST)

Back to products

Next product

Flora 5-40A 1 Phase kWh Electric Sub Meter Channel Type Front look of Product

Flora 5-40A 1 Phase kWh Electric Sub Meter Channel Type ₹504.00 ~~₹850.00~~ 40% off
(₹594.72 incl. GST)

Add to wishlist

SKU: N/A Category: Main Switches

Description
Additional information
Shipping and Delivery

Description

		Suitable HRC fuse-link		Open Execution Type FN (TPN) S-D-F suitable for DIN fuse-link
Size	Rated Current (A)	Type	Range (A)	Type	Cat. No.
Fr 1	32	Cylindical HF Size 14×51	2 to 32	FN 32 TPN / FP	SK95518
Fr 1	32	Cylindical HF Size 14×51	2 to 32	FN 32 TPN / FP CE*	SK95703*
Fr 1	63	Cylindical HF Size 14×51	2 to 63	FN 63 TPN / FP	SK95421
Fr 1	63	Cylindical HF Size 14×51	2 to 63	FN 63 TPN / FP CE*	SK95704*
Fr 2	100	DIN HN Size 000/00	63 to 100	FN 100 TPN	SK95568
Fr 2	125	DIN HN Size 000/00	63 to 125	FN 125 TPN	SK95001
Fr 2	160	DIN HN Size 000/00	63 to 160	FN 160 TPN	SK95713
Fr 3	200	DIN HN Size 0	80 to 200	FN 200 TPN	SK95418
Fr 3	250	DIN HN Size 1	125 to 250	FN 250 TPN	SK95642
Fr 4	315	DIN HN Size 1	125 to 315	FN 315 TPN	SK95461
Fr 4	400	DIN HN Size 2	200 to 400	FN 400 TPN	SK95481
Fr 5	630	DIN HN Size 3	315 to 630	FN 630 TPN	SK95521
Fr 5	800	DIN HN Size 3	315 to 800	FN 800 TPN	SK95679

		Suitable HRC fuse-link		In Sheet Steel Enclosure Type FN (TPN) S-D-F suitable for DIN fuse-link
Size	Rated Current (A)	Type	Range (A)	Type	Cat. No.
Fr 1	32	Cylindical HF Size 14×51	2 to 32	FN 32 TPN / FP CE*	SK90483*
Fr 1	63	Cylindical HF Size 14×51	2 to 63	FN 63 TPN / FP CE*	SK90484*
Fr 2	100	DIN HN Size 000/00	63 to 100	FN 100 TPN	SK90485
Fr 2	125	DIN HN Size 000/00	63 to 125	FN 125 TPN	SK90486
Fr 2	160	DIN HN Size 000/00	63 to 160	FN 160 TPN	SK90487
Fr 3	200	DIN HN Size 0	80 to 200	FN 200 TPN	SK90488
Fr 3	250	DIN HN Size 1	125 to 250	FN 250 TPN	SK90489
Fr 4	315	DIN HN Size 1	125 to 315	FN 315 TPN	SK90490
Fr 4	400	DIN HN Size 2	200 to 400	FN 400 TPN	SK90491
Fr 5	630	DIN HN Size 3	315 to 630	FN 630 TPN	SK90492
Fr 5	800	DIN HN Size 3	315 to 800	FN 800 TPN	SK90493

Additional information

Rated Current (A)	32A, 63A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 630A, 800A
Types	SS Enclosure, Without Enclosure
Country of Origin	India
Brand	L&T Switchgear
Manufacturer's Assurance	1 Year Warranty
No. of Poles	TPN
Voltage	415V
